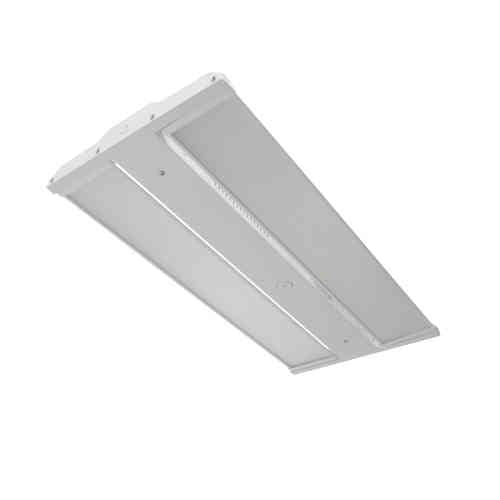

High Bay Lights HBLASR, Kelvin & Lumen Selectable, Rotational Optics, Dimmable, 3 Models

High Bay Lights HBLASR – High Intensity Brightness, Surface, or Suspension Installation

High Bay Lights HBLASR provide full area illumination for elevated installation. The Linear High Bay with Dual-Adjustable Light panels maximizes light directional performance. Lumen and Kelvin, CCT 4000K/5000K field selectable options accommodate location use flexibility. HBLASR are sensor ready and are compatible with any PIR or microwave sensors using a RCA 3mm connector. Three models provide an illumination range of 9,000 to 30,000 lumens. High Bay models are ideal for interior LED lighting at commercial, industrial, and retail locations including warehouses, manufacturing plants, and sporting venues.

Powder-coat, die cast aluminum, white housing delivers lasting durability. Moreover, the high efficiency long-life LEDs offer superior energy and maintenance cost savings. HBLASR lights provide uniform illumination and an outstanding L70 rating of 148,000 hours. LED lighting is capable of 0-10vDC dimming to control room illumination intensity improving occupant comfort and productivity. Installation includes chain, pendant, or surface mounting options. Chain mounting with V-hooks is standard. Lights are cULus listed for damp locations and backed with a manufacturer’s 5-year warranty of all electronics and housing.

High Bay Features and Specifications:

Manufacturer: Best Lighting Products
Model Numbers: HBLASR-15129L-4K5K, HBLASR-241815L-4K5K, HBLASR-302418L-4K5K
Correlated Color Temperatures (CCT): 4000K (neutral white) and 5000K (cool white)
Nominal Lumen Output Range: 9,000 to 30,000lm
Input Wattage Options: Refer to specification sheet Lumen Table.
Housing Material: Aluminum
Lens: Polycarbonate
Length Options (inches): 25.8 x 12.1 x 1.9 inches
Unit Weight (lbs.): 7.5 pounds
Dimmable Lighting: Yes (Levitron Light Dimmers, Lutron Light Dimmers)
Installation Locations: Building interior.
Warranty: 5 Years
Input Voltage Range: 100-277V, Operating frequency: 50-60HZ
Power Factor >0.90
LED Light Output Efficiency (lumens/watt): refer to specification sheet electrical data.
Color Rendering Index CRI > 80RA
Operational Temperature Range: -40 to 50℃ (-40 to 122°F)
LED Lifespan @ 70% (L70): 148,000 hours
Total Harmonic Distortion (THD): < 20%
Listings: cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
Installation: Chain mounting with V-hooks is standard. Optional surface mounting kit provides attachment to solid surfaces. Optional pendant mounting kit provides pendant attachment to 1/2″ rigid conduit.
Accessories: Sensors: passive infrared and microwave step dimming. Remote control (required to change factory settings). Wire guard, Mounting option kits, Remote mount emergency drivers.
Note: A step-down transformer required for 347-480V applications. Use an optional transformer cover box for enclosed wire connections.

High Bay Light HBLASR Specification Sheet
