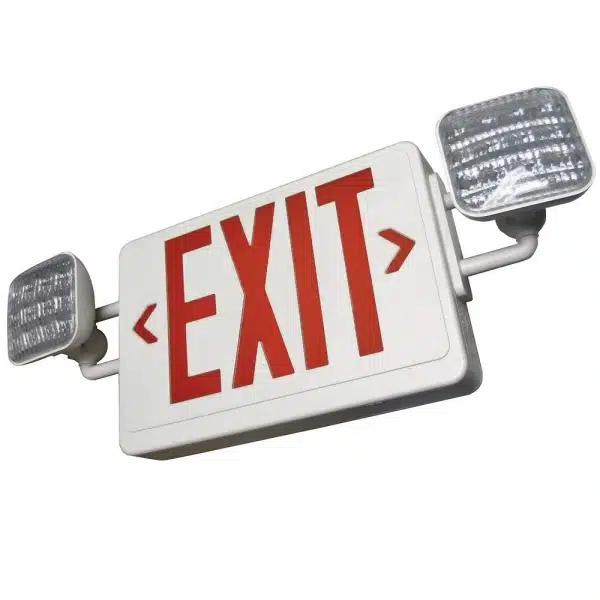

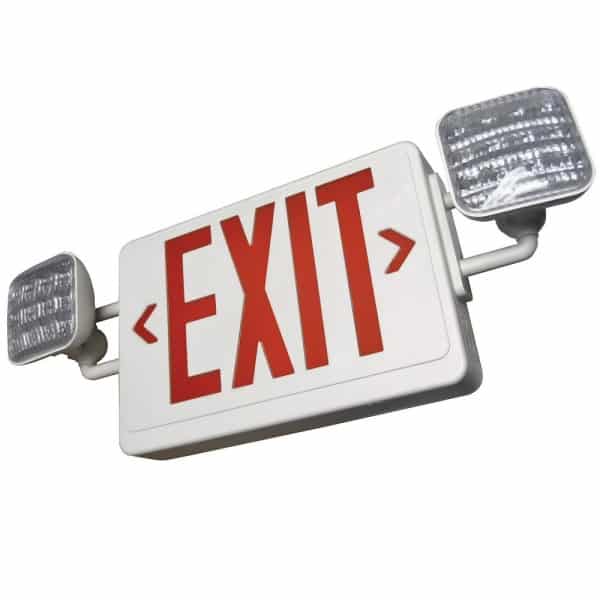

Exit Sign LEDCXTEU w Dual Emergency Lights, 120/277V, 90 Min. 9V NiCd, Black-White Finish

Exit Sign LEDCXTEU with Two 1-watt Adjustable High Brightness Lamps. 9V Rechargeable NiCd Battery

Exit Sign LEDCXTEU with two ultra-bright white LED lamps. Each 1-watt lamp is enhanced by a chrome-plated metalized reflector and plastic lens for maximum light output. Adjustable lamp heads provide optimal area illumination. LEDCXTEU operates on dual 120/277 voltage. The emergency light is equipped with a charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. Backup power is provided by a 9-volt maintenance free rechargeable NiCad battery. An internal solid-state transfer switch automatically connects the internal battery to the lamp heads providing 90-minutes of emergency illumination. A fully automatic solid-state two rate charger initiates complete battery recharge within 24 hours.

LEDCXTEU also powers LED lighting fixtures operating remotely resulting in larger area coverage at a lower purchase cost. Wall or ceiling mounting of the injection molded, 5VA flame retardant thermoplastic housing is performed by connection to most standard sized junction boxes. A quick connect back plate snaps into place for an internal electrical connection. Top and side mounted knockouts are also available for conduit connections.

A five-year warranty extends to all electronics and housing with the NiCad battery prorated for five years. UL Listed for damp locations and temperature rated for (0°C – 40°C). LED combo exit light EM meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

LEDCXTEU Features and Specifications:

Manufacturer: Best Lighting Products
Model: LEDCXTEU
Housing: 5VA flame retardant, high-impact resistant, thermoplastic with snap-out chevron directional indicators.
Housing Finish: White or Black
Exit Sign Outside Dimensions: 20 5/8 x 4 5/16 x 8 5/8 inches. Refer to specification sheet for dimension presentation.
Lamps: Two “adjustable” ultra bright white LED modules incorporating lamp, chrome plated metallized reflector and plastic lens.
Exit Sign Spacing: Adjustable lamp heads support up to 30-foot center to center spacing.
Light output: Total 2 watt. (8 LEDs x 0.125W per lamp head).
Exit Sign LEDCXTEU Voltage: Dual 120/277
Battery: 9.6V maintenance-free rechargeable NiCad.
Battery Backup Operation: Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Battery Charge Status: charge rate/power “On” LED indicator light and push-to-test switch for mandated code compliance testing.
Installation: wall or ceiling mount. Reference universal knockout pattern on back plate for wall install. Convenience knockout for power conduit.
Listings: UL listed for damp locations (0°C – 40°C). Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Exit Sign LEDCXTEU Warranty: Five year on electronics and housing. Battery prorated for five years.
Options: Remote capacity for satellite emergency lighting, High Lumen Lamps (1.5 watt per head), and Self Diagnostic feature that performs monthly, bi-annual, and annual tests to confirm reliable operation.

Exit Sign LEDCXTEU Specification Sheet

Ordering Quantity or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
