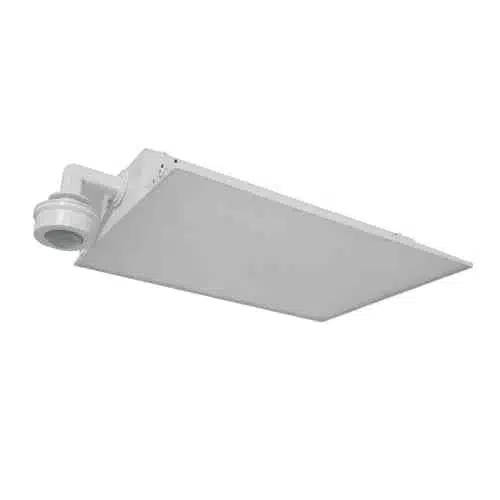

High Bay Lights FHBSR, Field Select Kelvin & Lumen Output, PC Lens, Dimmable, 4 Models

High Bay Lights FHBSR – High Intensity Brightness, Surface, or Suspension Installation

High Bay Lights FHBSR provide full area illumination maximizing elevated installation. Field selectable Kelvin and lumen settings maximize installation flexibility. LED lighting is capable of 0-10vDC dimming to control room illumination intensity improving occupant comfort and productivity. FHBSR lights provide uniform illumination and an outstanding L70 rating of 135,000 hours. The powder-coat white aluminum housing delivers lasting durability. Moreover, the high efficiency long-life LEDs offer superior energy and maintenance cost savings and are DesignLights Consortium (DLC) Premium listed.

Installation includes chain, pendant, or surface mounting options. Chain mounting with V-hooks is standard. Lights are cULus listed for damp locations and backed with a manufacturer’s 5-year warranty of all electronics and housing. FHBSR provides interior LED lighting at commercial, industrial, and retail locations including warehouses, manufacturing plants, and sporting venues.

High Bay Features and Specifications:

Manufacturer: Best Lighting Products
Model Numbers: FHBSR-181512L-4K5K, FHBSR-241815L-4K5K, FHBSR-363024L-4K5K, FHBSR-604836L-4K5K
Correlated Color Temperatures (CCT): 4000K (neutral white) and 5000K (cool white)
Nominal Lumen Output Range: 12,000 to 60,000lm
Input Wattage Options: Refer to specification sheet Lumen Table.
Housing Material: Aluminum
Lens: Polycarbonate
Length Options (inches): 13 to 30.70. Refer to specification sheet for model specific details.
Unit Weight (lbs.): 3.7 to 9.25. Refer to specification sheet for model specific details.
Dimmable Lighting: Yes (Best Lighting, Levitron Light Dimmers, Lutron Light Dimmers)
Installation Locations: Building interior.
Warranty: 5 Years
Input Voltage Range: 100-277V, Operating frequency: 50-60HZ
Power Factor >0.90
LED Light Output Efficiency (lumens/watt) range: 87 to 428lm/w.
Color Rendering Index CRI > 80RA
Operational Temperature Range: -40 to 55℃ (-40 to 131°F)
LED Lifespan @ 70% (L70): 135,000 hours
Total Harmonic Distortion (THD): < 20%
Listings: cULus listed for damp locations in ambient temperatures from -40°C to 55°C (-40°F to 131°F). DLC Premium approved.
Accessories: Chain mounting with V-hooks is standard. Optional surface mounting kit provides attachment to flat ceilings. Optional pendant mounting kit provides pendant attachment to the junction box. A protective wire guard is also available.
Step-down transformer required for 347-480V applications. Use an optional transformer cover box for enclosed wire connections.

High Bay Light FHSBR Specification Sheet
