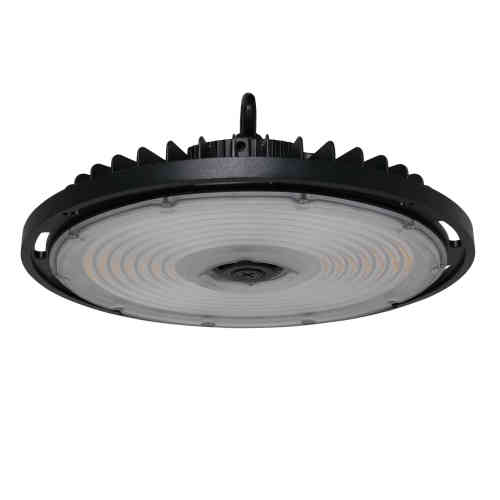

Round High Bay HBRSR, Lumen & Kelvin Field Selectable, Two Models, Black or White Body

Round High Bay HBRSR. Two Diameter Models

Round High Bay HBRSR. Field selectable Lumen and Kelvin (4000K/ 5000K) settings. Tri-lumen selectable drivers control the 16,000 to 35,000 nominal lumen emission range. Long-life LEDs L70 rating of 146,000 hours of operation. 0-10VDC dimming drivers are standard. Motion detection screw-in sensor equipped. Round High Bay Light operates on Universal 120-277V AC voltage (50-60Hz). Two HBRSR die cast aluminum housing diameters, 10 & 13.6 inches available in white or black, Fitted with a polycarbonate lens.

Mounting options include standard eyebolt, 180° rotational optional yoke mounting bracket to conduit, or pendant snap hook. Round high bay HBRSR is IP65 rated, DLC 5.1 premium listed, and cULus listed for wet locations. Enhancing light projection are optional aluminum and polycarbonate reflectors with a 90-degree beam spread. Disk shape LED light with high lumen output illuminates retail, commercial, and industrial settings including warehouses, manufacturing plants, sports venues, and big box retailers.

HBRSR Features and Specifications:

Manufacturer: Best Lighting Products
Models: HBRSR-221816L-4K5K, HBRSR-353024L-4K5K
Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures
Long-life LEDs provide 146,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)
Nominal Lumen Output: refer to specification sheet for lumen data.
LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 of operation
Dimensions: HBRSR-221816L-4K5K 10.6x 5.5″, HBRSR-353024L-4K5K 13x 5.6″
Weight: HBRSR-221816L-4K5K 3.7lb, HBRSR-353024L-4K5K 6lb
Universal 120-277 AC voltage (50-60Hz).
6-foot incoming AC power cords and 6-foot incoming dimming cord.
0-10vdc dimming drivers are standard
Watertight, compression-type electrical connectors
Power factor > 0.90
Total harmonic distortion < 20%
Color rendering index (Ra) > 80
Die cast aluminum housing, painted white or black.
Polycarbonate lens
Sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.

Round High Bay HBRSR Specification Sheet
