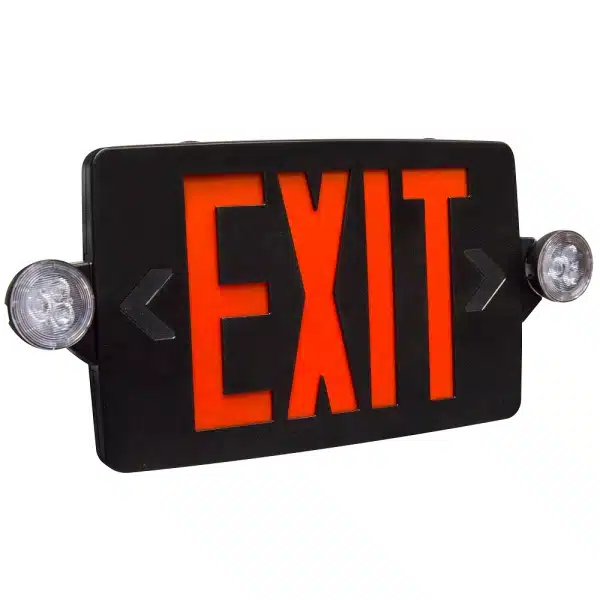

Exit Sign CTXTEU with Dual Emergency Lights, 120/277V, 90 Min. NiCd, 5VA Thermoplastic Low Profile, Black or White Finish

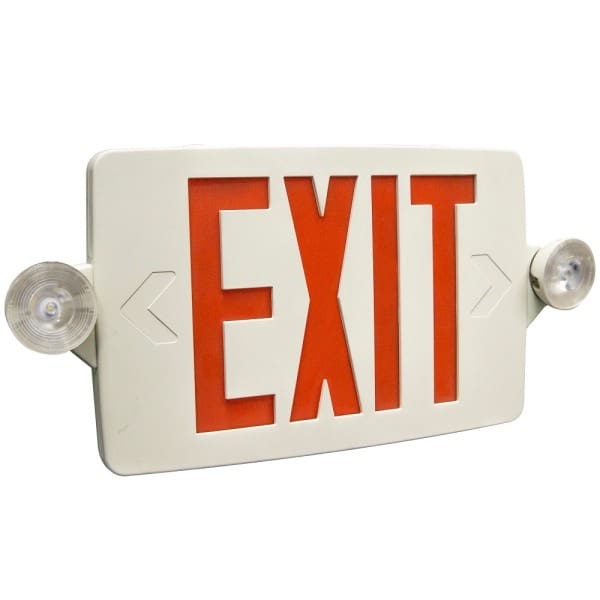

Exit Sign CTXTEU with Adjustable High Brightness LED Lamps, White or Black Housing Finish

Exit Sign CTXTEU with two ultra-bright white LED lamps. Each lamp contains one .0.5-watt LED, which are enhanced by a chrome-plated metalized reflector and plastic lens for maximum light output. Adjustable lamp heads provide optimal area illumination. CTXTEU operates on dual 120/277 voltage. The emergency light is equipped with a charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. Backup power is provided by a 3.6-volt maintenance free rechargeable NiCad battery. An internal solid-state transfer switch automatically connects the internal battery to the lamp heads providing 90-minutes of emergency illumination. A fully automatic solid-state two rate charger initiates complete battery recharge within 24 hours.

CTXTEU also powers LED lighting fixtures operating remotely resulting in larger area coverage at a lower purchase cost. Wall or ceiling mounting of the injection molded, 5VA flame retardant thermoplastic housing is performed by connection to most standard sized junction boxes. A quick connect back plate snaps into place for an internal electrical connection. Top and side mounted knockouts are also available for conduit connections.

A one-year warranty extends to all electronics and housing with the NiCad battery prorated for one year. UL Listed for damp locations and temperature rated for (0°C – 30°C). LED combo exit light EM meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

CTXTEU Features and Specifications:

Manufacturer: Best Lighting Products
Model: CTXTEU
Housing: 5VA flame retardant, high-impact resistant, thermoplastic
Housing Finish: White or Black
Exit Sign Outside Dimensions: 16 x 1 15/16 x 7 15/16 inches. Refer to specification sheet for dimension presentation.
Lamps: Two “adjustable” ultra bright white LED modules incorporating lamp, reflector and lens.
Light output: Total 1 watt. 0.5-watt LED per lamp head.
Exit Sign CTXTEU Voltage: Dual 120/277
Battery: 3.6V maintenance-free rechargeable NiCad.
Battery Backup Operation: Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Battery Charge Status: Bi-color LED indicator light indicates battery charge condition (Green-normal, Red-check battery).
EM Battery Charging: automatic solid-state, two rate charger fully recharges discharged NiCD battery in 24 hours.
EM Operational Testing: Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
Installation: wall or ceiling mount. Reference universal knockout pattern on back plate for wall install. Convenience knockout for power conduit.
Listings: UL listed for damp locations (0°C – 30°C). Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Exit Sign CTXTEU Warranty: One year on electronics and housing. Battery prorated for five years.
Options: Remote capacity for satellite emergency lighting.

Exit Light Combo CTXTEU Specification Sheet

Ordering Quantity or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
