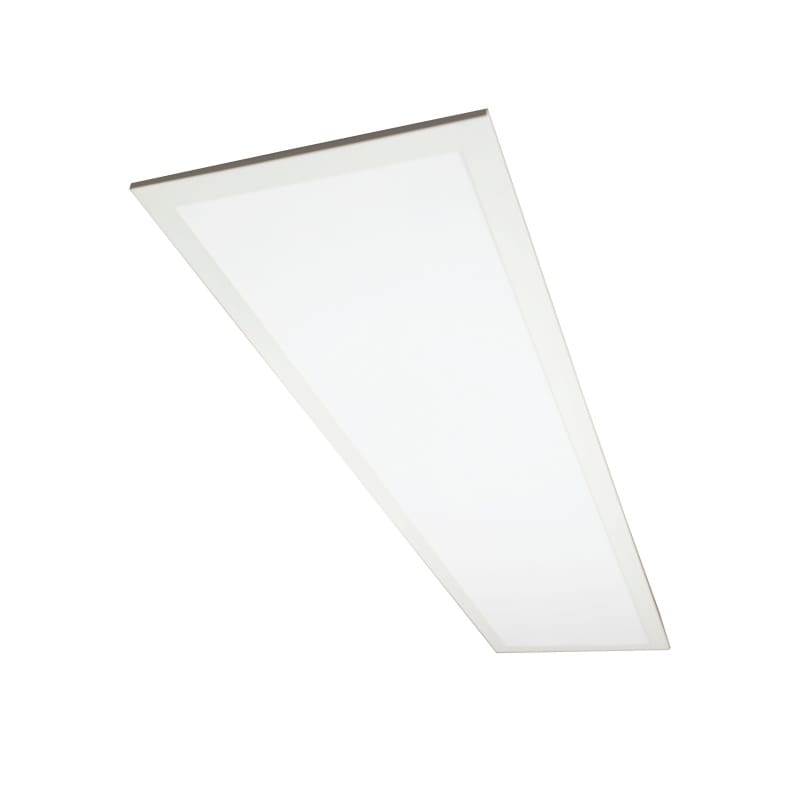

Panel Light PNL1x4LKFS Modify Color Temperature No LED Pixilation
Panel Light PNL1x4LKFS. Versatile 1×4 Back-Lit LED Panel provides a cost-effective alternative to fluorescent lighting. Panel Light PNL1x4LKFS delivers uniform illumination with no visible LED pixilation. Panel light construction consists of an aluminum frame with steel housing backplate. The light is fitted with a PMMA (polymethyl methacrylate), aka acrylic lens, for optimal light distribution, efficiency, and longevity.
Panel light Correlated Color Temperatures (CCT) field selectable settings are 3500K (warm white), (4000K (neutral white) or 5000K (cool white). Field selectable light output options range from 4752 to 5044 lumens with output efficacy of 111 to 123 luminaire watts (lm/W). PNL1x4LKFS fixtures are L70 rated of 144,000 hours. Each fixture is cULus listed for wet locations. Universal 120-277 AC voltage (50-60Hz) is standard as is 0-10vdc drivers providing 10% continuous dimming. Easy to install in new or retrofit construction, standard installation options include recessed mounting in grid ceilings or suspended mounting. Standard earthquake clips provide secure installation in grid ceilings. Installation in plaster or hard ceiling is accommodated with the optional Surface Mount kit (LEDSMKT-14) and Flange Mounting kit (FLANGEKIT14-ET). LED panel lights are backed by the manufacturer’s 5-year warranty on all electronics and housing.
Panel Light Features and Specifications:
Manufacturer: Best Lighting Products
Model Numbers: PNL1X4LKFS
Field selectable 3500k (warm/neutral white), 4000k (neutral white), & 5000k (cool white) color temperatures.
Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90)
Selectable lumen outputs range from 2,600 to 4,000 nominal lumens.
Back-lit uniform illumination with no visible LED pixilation.
Input wattage: 19W to 35W depending upon lumen output selection.
Dimensions: 47.7″(L) x 11.8″(W) x 1.5″(H)
Weight: 6 lbs.
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming drivers are standard.
Power factor > 90.
Total harmonic distortion < 20%.
Color rendering index > 80.
Aluminum frame and steel housing backplate.
PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency, and longevity.
Standard earthquake clips provide secure installation in grid ceilings.
Optional emergency drivers (remote mounted) are available.
cULus for damp locations and insulated ceilings (Type IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
DLC approved.
Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
Complies with FCC Part 15, class B.
Surge immunity protection = 1kV.
5-year warranty on all electronics and housing.
Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling. See Mounting Kits
Listings: cULsu listed for wet locations. Complies with FCC Part 15, Class B. Complies with EN61000-4-5, surge immunity protection (1kV). Flicker-free per IEEE1789-2015.
Optional Accessories: Optional Surface Mount Kit (LEDSMKT-14) and Flange Mounting Kit (FLANGEKIT14-ET). Optional Cable Mounting Kit (LEDPNL-CMK) provides additional security, as well as suspended mounting.
Panel Light PNL1x4LKFS Specification Sheet
Need Quantities or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
