LED Emergency Light LEDSDXR627, Two 1W Lamps, 90 Min. Pb-Ac Battery, Powers Remote Light Fixtures

LED Emergency Light LEDSDXR627, Base Station Powers Remote Heads

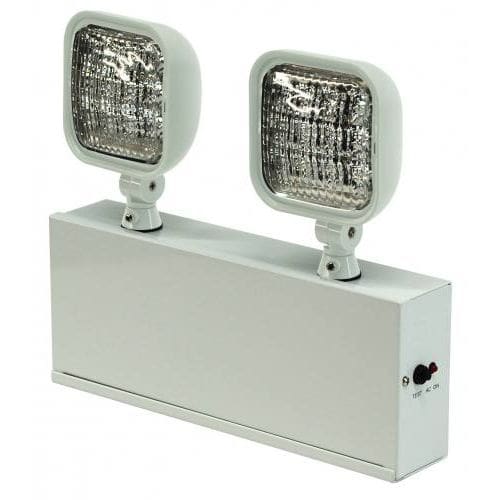

LED Emergency Light LEDSDXR627 with two ultra-bright white LED lamps. Each lamp contains twelve 0.125-watt LEDs, which are enhanced by a chrome-plated metalized reflector and plastic lens for maximum light output. Adjustable lamp heads provide optimal center to center spacing of fourteen (14) feet with mounting height at 7.5 feet.

LEDSDXR627 operates on dual 120/277 voltage. The emergency light is equipped with a charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. Backup power is provided by a 6-volt maintenance free rechargeable sealed lead acid battery. An internal solid-state transfer switch automatically connects the internal battery to lamp heads providing 90-minutes of emergency illumination. A fully automatic solid-state two rate charger initiates complete battery recharge within 24 hours.

Battery also powers LED lighting fixtures operating remotely from base station resulting in larger area coverage at a lower purchase cost. Refer to RHLED single and double fixtures for remote emergency lighting options. Remote capacity is 25W.

Wall or ceiling mounting of 20-guage steel housing is performed using knockouts on the back wall mount or side and top knockouts for conduit installation.

A five-year warranty extends to all electronics and housing with the battery pro-rated for two years. UL Listed for damp locations and temperature rated for (20°C – 50°C). LEDSDXR627 meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Optional features include a 12-LED head that allows for increasing spacing between emergency lights.

Emergency Light Features and Specifications:

Manufacturer: Best Lighting Products
Model: LEDSDXR627
Housing Material: Steel White Finish
Lens: Chrome plated metalized reflector with plastic lens
Dimensions: 12″x 2.5″x5″
Unit Weight: Approximately 7.2 lbs. with battery. 5.8 lbs. without battery
Dimmable: No
Installation Locations: Interior – Emergency Egress Lighting
Warranty: 5 Years on light. Battery pro rated for two years.
Input Voltage Range: 100-277V, Operating frequency: 50-60HZ
LED Light Output Efficiency (lumens/watt):
Battery: 6V Lead Acid (PbAc)
Operational Temperature Range: 20℃ to 50℃ (68 to 122°F)
Photometric Data: download PDF Cut Sheet at the bottom of this page.
Listings: UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes. UL Listed for damp locations.

LED Emergency Light LEDSDXR627 Specification Sheet
