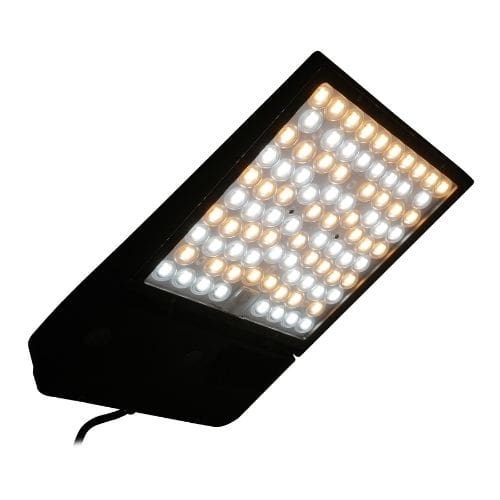

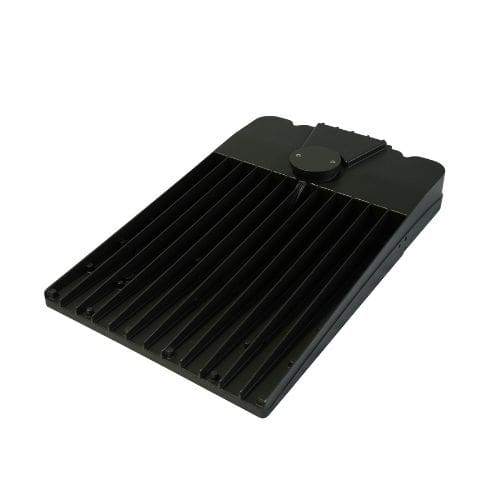

Area Lighting MPALDSR, Two Models, Field Select: Lumen, Kelvin, Beam Pattern. Photocell Ready, DLC Premium

Area Lighting MPALDSR – Model 242115L and Model 403530L – Field Select Kelvin, Lumen, Type III/IV/V Light Distribution Pattern.

Area Lighting MPALDSR. Field Select Kelvin (CCT), Lumen output and Light Distribution pattern. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white). In addition, pick low, medium or high lumen level output based on selected light distribution setting.

Nominal lumen output range for Model 242115L is 15,381 to 26,687. For Model 403530L the range is 28,342 to 42,653. Type III, Type IV, and Type V light distribution pattern are configured using selection switch. An integrated photocell is standard. Optional NEMA photocell is available.

Area Lighting MPALDSR models are DLC Premium listed, L70 rated at 167,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. The die cast aluminum housing is protected with a durable dark bronze powder coat finish. Each model is equipped with a seamless silicone gasket seal and a IK08 rated impact resistant polycarbonate lens.

Area Lighting MPALDSR includes 0-10vdc dimming drivers. Additional accessories include factory installed passive infrared or a microwave step dimming sensor. Sensor factory settings are field adjustable or adjusted using a purchased separately remote control. Universal 120-277 AC voltage (50-60Hz) is standard. Arm, Slip Fitter, Trunnion and Yoke mounting brackets are available. Best Lighting Products includes a Five-year warranty on all electronics and housing.

Area Lighting MPALDSR Specification Sheet
