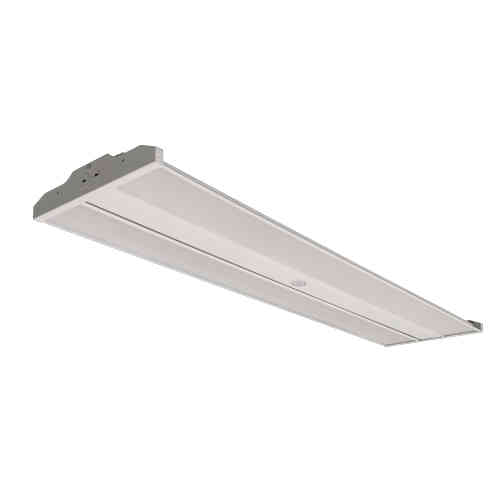

High Bay Lights HBLSR Lens Options Narrow-Medium-Wide Light Distribution
High Bay Lights HBLSR offer area illumination with optional lens for controlling narrow, medium or wide light beam distribution. Medium lens is standard. Field selectable Kelvin and lumen settings maximize installation flexibility. LED lighting is capable of 0-10vDC dimming to control room illumination intensity improving occupant comfort and productivity. HBLSR lights provide uniform illumination and an outstanding L70 rating of 134,000 hours. The powder-coat white steel housing delivers lasting durability. Moreover, the high efficiency long-life LEDs offer superior energy and maintenance cost savings and are DesignLights Consortium (DLC) Premium listed.
Installation includes chain, pendant, or surface mounting options. Chain mounting with V-hooks is standard. Lights are cULus listed for damp locations and backed with a manufacturer’s 5-year warranty of all electronics and housing. HBLSR provides interior LED lighting at commercial, industrial, and retail locations including warehouses, manufacturing plants, and sporting venues.
High Bay Features and Specifications:
Manufacturer: Best Lighting Products
Model Numbers: HBLSR-181512L-4K5K, HBLSR-241815L-4K5K, HBLSR-363024L-4K5K, HBLSR-604836L-4K5K
Correlated Color Temperatures (CCT): 4000K (neutral white) and 5000K (cool white)
Nominal Lumen Output Range: 12,000 to 60,000lm
Input Wattage Options: Refer to specification sheet Lumen Table.
Housing Material: Steel
Lens: Polycarbonate
Length Options (inches): 16.5 to 44. Refer to specification sheet for model specific details.
Unit Weight (lbs.): 4.6 to 12. Refer to specification sheet for model specific details.
Dimmable Lighting: Yes (Best Lighting and Levitron Light Dimmers)
Installation Locations: Building interior.
Warranty: 5 Years
Input Voltage Range: 100-277V, Operating frequency: 50-60HZ
Power Factor >0.90
LED Light Output Efficiency (lumens/watt) range: refer to specification sheet for individual model details
Color Rendering Index CRI > 80RA
Operational Temperature Range: -40 to 50℃ (-40 to 122°F)
LED Lifespan @ 70% (L70): 134,000 hours
Total Harmonic Distortion (THD): < 20%
Listings: cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F). DLC Premium approved.
Accessories: Chain mounting with V-hooks is standard. Optional surface mounting kit provides attachment to flat ceilings. Optional pendant mounting kit provides pendant attachment to the junction box. A protective wire guard is also available.
Step-down transformer required for 347-480V applications. Use an optional transformer cover box for enclosed wire connections.
High Bay Light HBLSR Specification Sheet
Ordering Bulk Quantities or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
