LED Emergency Light EM, Two 1.5W Lamps, 120/277V with 90 Min. NiCd, Powers Remote Light Evacuation Fixtures

LED Emergency Light EM, Two High Brightness LED Lamps, White or Black Housing Finish

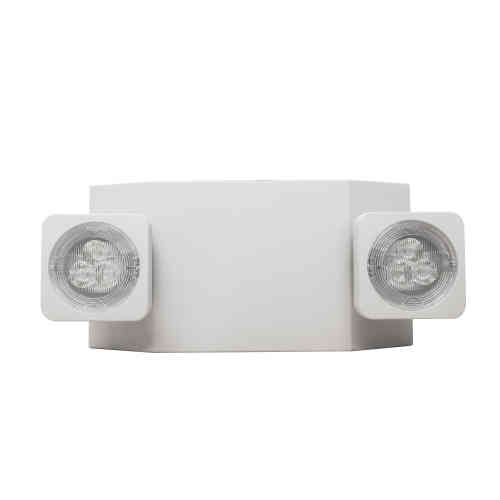

LED Emergency Light EM with two ultra-bright white LED lamps. Each lamp contains three 0.5-watt LEDs, which are enhanced by a chrome-plated metalized reflector and plastic lens for maximum light output. Adjustable lamp heads provide optimal center to center spacing of up to 30 feet with mounting height at 10 feet.

EM operates on dual 120/277 voltage. The emergency light is equipped with a charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. Backup power is provided by a 3.6-volt maintenance free rechargeable NiCad battery. An internal solid-state transfer switch automatically connects the internal battery to lamp heads providing 90-minutes of emergency illumination. A fully automatic solid-state two rate charger initiates complete battery recharge within 24 hours.

Battery also powers LED lighting fixtures operating remotely from base station resulting in larger area coverage at a lower purchase cost. Refer to RHLED single and double fixtures for remote emergency lighting options.

Wall or ceiling mounting of the injection molded, 5VA flame retardant thermoplastic housing is performed by connection to most standard sized junction boxes. A quick connect back plate snaps into place for an internal electrical connection. Top and side mounted knockouts are also available for conduit connections.

A five-year warranty extends to all electronics and housing with the NiCad battery prorated for five years. UL Listed for damp locations and temperature rated for (0°C – 50°C). LED Emergency Light EM meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Optional features include a 2.5-watt LED head that allows for increased spacing between emergency lights.

EM Features and Specifications:

Manufacturer: Best Lighting Products
Model: EM
Housing: 5VA flame retardant, high-impact resistant, thermoplastic
Housing Finish: White or Black
Housing Outside Dimensions: 9 1/4 x 4 9/16 x 2 7/8 inches
Lamps: Two ultra bright white LED modules incorporating lamp, reflector and lens.
Light output: Total 1.5 watt. 3 LEDs per lamp at 0.5 watt each.
Spacing: Adjustable lamp heads allow for 30-foot center to center spacing at ten-foot mounting height.
Voltage: Dual 120/277
Battery: 3.6V maintenance-free rechargeable NiCad.
Battery Backup Operation: Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Battery Charge Status: Bi-color LED indicator light indicates battery charge condition (Green-normal, Red-check battery).
EM Battery Charging: automatic solid-state, two rate charger fully recharges discharged NiCD battery in 24 hours.
EM Operational Testing: Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
Installation: wall or ceiling mount. Reference universal knockout pattern on back plate for wall install. Convenience knockout for power conduit.L
Listings: UL listed for damp locations (0°C – 50°C). Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Certified to CEC under Title 20 regulations.
Warranty: 5 Years on light. Battery prorated for five years.
Options: 2.5-watt remote lamp. Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.

LED Emergency Light EM Specification Sheet
