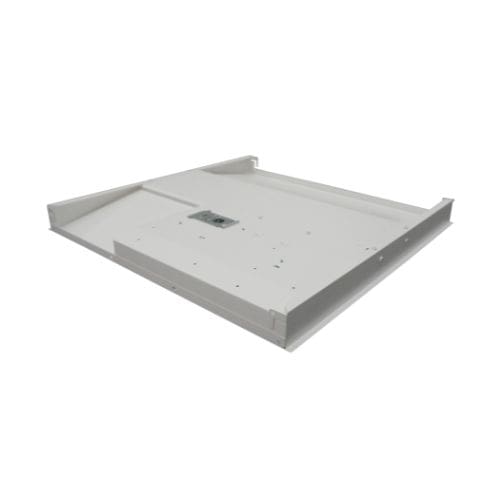

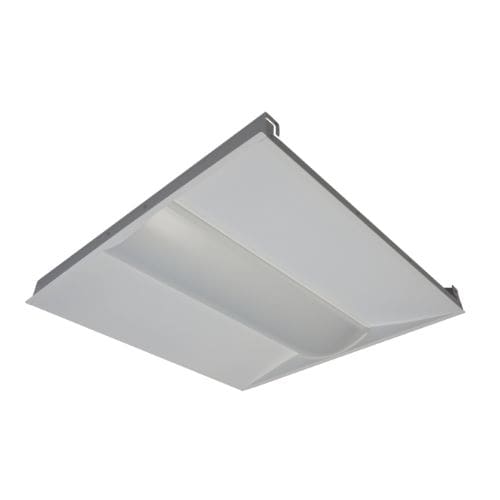

Center Basket CB22 LKFS, Grid or Suspended Ceiling Installation, Dimmable
Center Basket CB22 LKFS. Ceiling light 2×2 is a DLC listed luminaire commonly installed as recessed lighting in new construction and as an upgrade to fluorescent lighting in property renovations. CB22 LKFS is equally suitable for residential placement. Constructed from rolled steel with powder coat finish and equipped with an acrylic lens the troffer light accommodates sheet rock, grid, or suspension installation.
Center Basket CB22 LKFS light Correlated Color Temperatures (CCT) field selectable settings are 3500K (warm white), (4000K (neutral white) or 5000K (cool white). Field selectable light output options range from 3073 to 4370 lumens with output efficacy of 131 to 144 luminaire watts (lm/W). CB22 LKFS direct-indirect center diffuser emits uniform ambient LED lighting with no visible pixilation. LED troffer reflected matte surface provides a softened perforated light appearance to room occupants, reducing eye strain. LED Troffer Light CB22 LKFS high efficiency luminaire delivers long-life operation with a L70 rating of 196,000 hours. The ceiling light is capable of standard 0-10vDC dimming and is compatible with Best Lighting, Lutron, and Leviton dimmers.
Light Features and Specifications:
Manufacturer: Best Lighting Products
Model Numbers: CB22-LKFS
Field selectable 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.
Long-life LEDs provide at least 196,000 hours of operation with at least 70% of initial lumen output (L70).
Provides a range of 3,000 to 4,300 nominal lumens.
Uniform illumination with no visible LED pixilation.
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc, continuous dimming capability is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index (Ra) > 80.
Steel housing and PMMA lens.
Dimensions: 23.7 x 23.7 x 2 inches
Weight: 7lbs
cULus listed for damp locations and insulated ceilings in ambient
temperatures from -25°C to 50°C (-13°F to 122°F).
UL listed for maximum of 4, 12 AWG through branch circuit conductor. Inherently protected.
Type IC rated for insulated ceilings.
DLC approved.
Low risk of flicker (per IEEE1789-2015) at 100% light output level.
Complies with FCC Part 15, class A.
Complies with IEEE C.62.41-2002, input transient surge protection (2.5kV).
5-year warranty on all electronics and housing.
Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
Built-in earthquake clips provide secure installation in grid ceilings.
Center Basket CB22 LKFS Installation and Options: Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using earthquake clips. Optional surface mounting kits (SMKT-22) mount below the ceiling. Optional flange mounting kits provide for recessed installation on plaster or other hard ceilings. Attach Flange Mount Kit (FLANGEKIT22-ET) to ceiling joists or other stationary structures, and the panel is mounted flush to the ceiling. Optional cable mounting kits provide additional security, as well as suspended mounting. Attach one end of the Cable Mount Kit (LEDPNL-CMK) to luminaire earthquake clips using spring clips and attach the other end to stationary structures using the adjustable, locking ceiling attachment.
LED Center Basket 2×2 Specification Sheet
