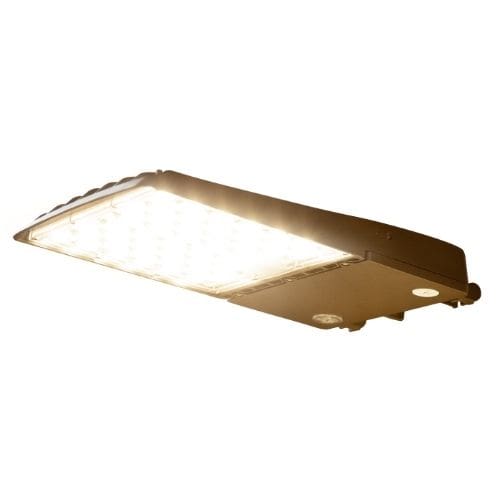

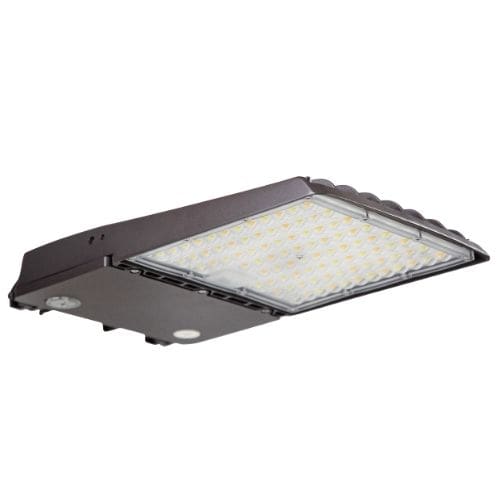

Area Lighting MPALSR, Two Models, Field Select: Lumen/CCT, T3 & T5 Beam Patterns, DLC Premium

Area Lighting MPALSR – Models 241812L (T3/T5), 403224L (T3/T5). Field Select Kelvin and Lumen settings.

Area Lighting MPALSR. Field Select Kelvin (CCT) and Lumen output. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white). In addition, pick low, medium or high lumen level. Nominal lumen range for Model 241812L is 12,267 to 25,747. For Model 403224L the range is 23,377 to 41,366. Type III or Type V light distribution pattern selected at purchase. An RCA receptacle is standard. Order separately, the 12VDC photocell or a NEMA photocell. When NEMA photocell is selected it must be ordered with the optional NEMA 3-pin photocell receptacle.

Area Lighting MPALSR models are DLC Premium listed, L70 rated at 167,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. The die cast aluminum housing is protected with a durable dark bronze powder coat finish. Each model is equipped with a seamless silicone gasket seal and a IK08 rated impact resistant polycarbonate lens.

Area Lighting MPALSR includes 0-10vdc dimming drivers. Additional accessories include factory installed passive infrared or a microwave step dimming sensor. Changing sensor factory settings requires purchase of a remote control. Universal 120-277 AC voltage (50-60Hz) is standard. Special factory order of 277-480 volts is optional. Arm, Slip Fitter, Trunnion and Yoke mounting brackets are available. Best Lighting Products includes a Five-year warranty on all electronics and housing.

Area Lighting MPALSR Specification Sheet
