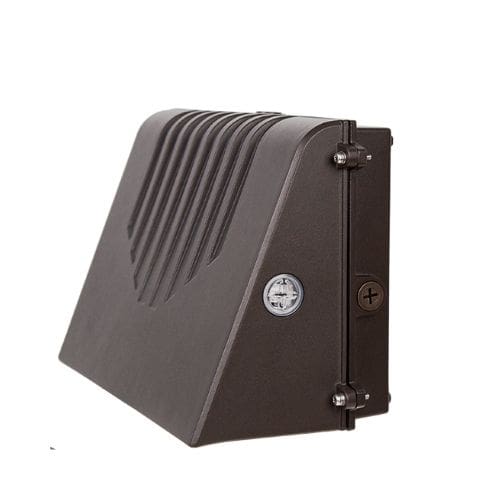

Full Cutoff Wall Pack WPFCSR, Two Models, Field Select Lumen, Kelvin and Photocell Settings, DLC Premium

Full Cutoff Wall Pack WPFCSR, Motion Detectable, Maximum Illumination Flexibility

Full Cutoff Wall Pack WPFCSR. Field Select Kelvin (CCT) and Lumen output. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white). In addition, pick the lumen brightness level by selecting from four wattage options. Nominal lumen output range for Model 9865L is 4,815 to 9,010. For Model 17151310L the range is 9,337 to 17,186.

An integrated photocell is standard with an on-off activation switch. Wall pack is DLC Premium listed, L70 rated at 167,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. The die cast aluminum housing is protected with a durable bronze powder coat finish. Each model is equipped with a seamless silicone gasket seal and IK06 rated impact resistant polycarbonate lens.

Wall packs include 0-10vdc dimming drivers operated by controllers manufactured by Best, Leviton, and Lutron. Additional optional accessories include a passive infrared sensor or a microwave step dimming sensor. Sensor factory settings are field adjustable or adjusted using a separately purchased remote control. Factory installed emergency drivers are also available. Universal 120-277 AC voltage (50-60Hz) is standard. Best Lighting Products includes a Five-year warranty on all electronics and housing.

Model 9865L and Model 17151310L Specification Sheet

Need Quantity or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
