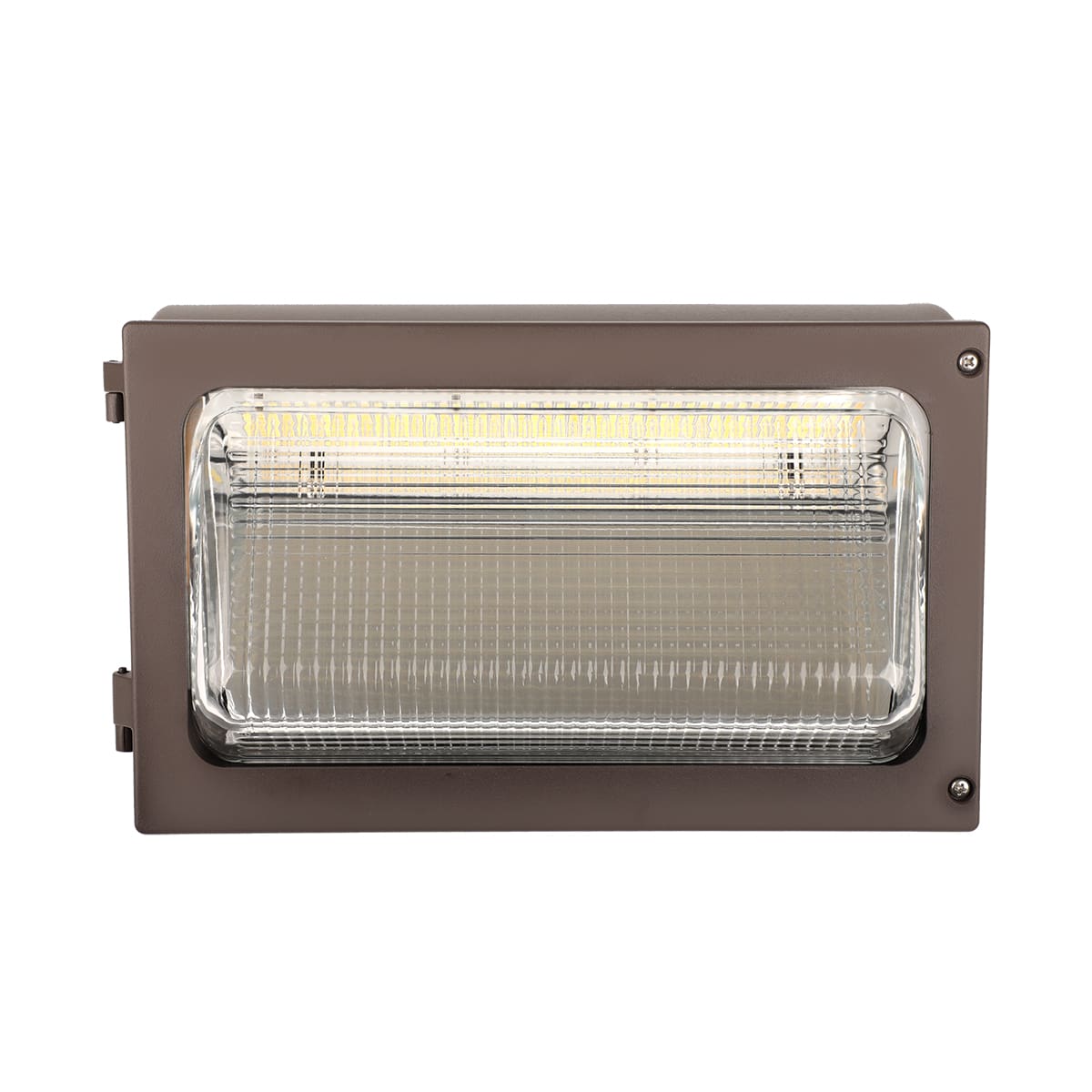

WPT-LKFS Full Cutoff Wall Pack, Lumen & Kelvin Select, 3 Models, Dimmable, DLC Premium

WPT-LKFS Wall Pack – Field Select Kelvin and Lumen Output. Choice of 3 Models

WPT-LKFS Full Cutoff Wall Pack delivers Field Selectable lumen and Kelvin (CCT) options. Choose from three nominal lumen output models 7,000, 10,000 and 15,000. Light output ranges from 4,300 to 15,500 nominal lumens at 124 to 159 lumens per watt (lm/W). Dusk to dawn outdoor light fixture is DLC Premium approved, L70 rated at 130,000 hours, cULus listed for wet locations, and IP65 ingress protection rated.

Aluminum housing is protected with a durable dark bronze powder coat finish and fitted with an impact resistant glass lens. WPT-LKFS 0-10vdc dimming drivers are standard. Selectable Correlated Color Temperatures (CCT) include 3000K (warm white), 4000K (neutral white) and 5000K (cool white). Adjustable lumen output levels are low, medium, and high.

Full Cutoff Features, Warranties and Listings:

1. 1. Manufacturer: Best Lighting Products
   2. Full Cutoff Wall Pack Models: WPT-7L-LKFS, WPT-10L-LKFS and WPT-15L-LKFS
   3. Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.
   4. Long-life LEDs provide at least 70% of initial lumen output (L70) for > 130,000 hours of operation, and at least 90% of initial lumen output (L90) for > 39,000 hours of operation.
   5. Provides a range of 4,300 to 15,000 nominal lumens and 124 to 159 nominal lumens per watt (lm/W).
   6. 0-10vdc dimming drivers are standard.
   7. Universal 120-277 AC voltage (50-60Hz) is standard.
   8. Power factor > 0.90.
   9. Total harmonic distortion < 20%.
   10. Color rendering index (Ra) > 70.
   11. Cast aluminum housing with dark bronze, powder coat finish.
   12. Dimensions: 14 x 5 x 9 inches
   13. Full Cutoff Wall Pack Lens: Glass
   14. Weight: WPT-7L-LKFS (8lbs), WPT-10L-LKFS (8lbs) and WPT-15L-LKFS (9lbs)
   15. Three ½” NPT threaded openings.
   16. cULus listed for wet locations in ambient temperatures from -40°C to 40°C (-40°F to 104°F).
   17. IP65 rated for ingress protection.
   18. DLC premium approved
   19. Complies with FCC Part 15, class A.
   20. Lisitngs: Surge protection = 4kV
   21. 5-year warranty of all electronics and housing

WPT-LKFS Full Cutoff Wall Pack Specification Sheet
