Cylinder Wall Pack CYL-UPDN, Three Models, Field Select: Beam Direction, Lumens, & CCT, Dimmable

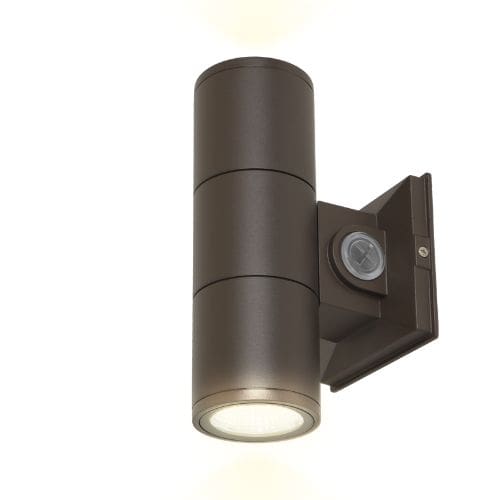

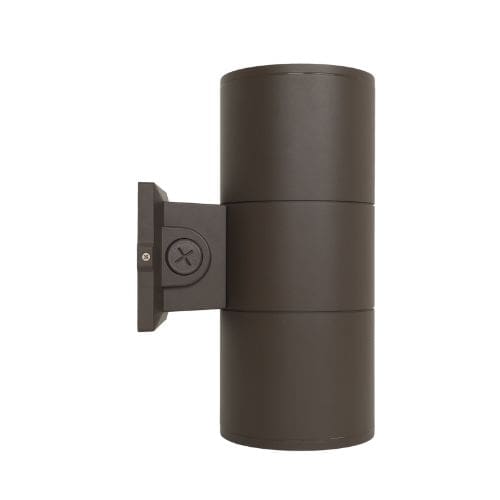

Cylinder Wall Pack CYL-UPDN – Decorative Light Projects Beam in Down or Up-Down Orientation

Cylinder Wall Pack CYL-UPDN. Decorative cylindrical shaped building perimeter security lighting is available in three size models. Field Select Kelvin (CCT) and Lumen output. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white). In addition, pick the lumen brightness level by selecting from three wattage options.

Nominal lumen output range for Model 976L is 600 to 900. Model 201712L the range is 1,200 to 2,000. Model 302722L the range is 2,200 to 3,000. Cylinder Wall Pack field selectable beam direction switch controls Up only, Down only, or both Up & Down orientation. An integrated photocell is standard with an on-off activation switch.

CYL-UPDN light fixture is L70 rated at 140,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. The die cast aluminum housing is protected with a durable dark bronze powder coat finish. Models are equipped with a seamless silicone gasket seal and an impact resistant glass lens. The light beam angle is 35-degrees.

Each wall pack has 0-10vdc dimming drivers operated by controllers manufactured by Best, Leviton, and Lutron. Universal 120-277 AC voltage (50-60Hz) is standard. Best Lighting Products includes a Five-year warranty on all electronics and housing.

Cylinder Wall Pack CYL-UPDN Specification Sheet
