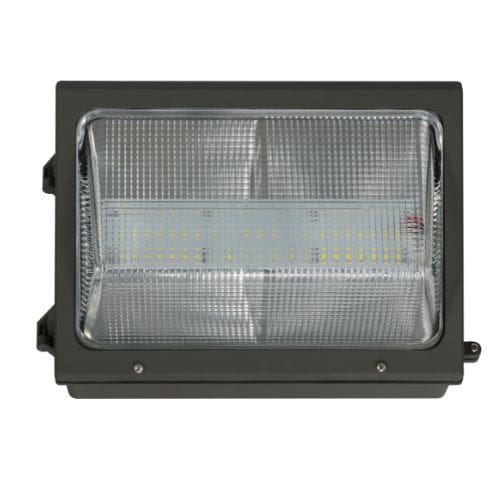

Semi-Cutoff Wall Pack WPT-XL-LKFS, Lumen-Kelvin Field Selectable, Dimmable, DLC Premium

Semi-Cutoff Wall Pack WPT-XL-LKFS Traditional Style Building Perimeter Lighting

Semi-Cutoff Wall Pack provides outdoor LED lighting typically installed on building outside walls, garages, and stairwells. Wall Pack capabilities include Field Selectable Kelvin (CCT) and Lumen output options. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white) color temperature and lumen output level at low, medium, or high.

Light levels range from 4,300 to 10,500 nominal lumens and 124 to 159 nominal lumens per watt (lm/W). Dusk to dawn outdoor light fixture is DLC 5.1 Premium approved, L70 rated at 130,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. Aluminum housing is protected with a durable dark bronze powder coat finish and fitted with a seamless silicone gasket seal and impact resistant polycarbonate lens.

Wall pack includes 0-10vdc dimming drivers and accommodates an optional button or pencil photocell sensor. Universal 120-277 AC voltage (50-60Hz) is standard.

WPT-XL-LKFS Features and Listings:

• Manufacturer: Best Lighting Products
• Models: WPT-7L-LKFS, WPT-10L-LKFS and WPT-15L-LKFS
• Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.
• Long-life LEDs provide at least 70% of initial lumen output (L70) for > 130,000 hours of operation, and at least 90% of initial lumen output (L90) for > 39,000 hours of operation.
• L70 & L90 hours are IES TM-21-11 calculated hours.
• LED chromaticity is based on < 5-step ANSI quadrangles.
• LED color maintenance < 0.003 chromaticity shift ((Δu’v’) over the initial 6,000 hours of operation.
• 1-10vdc dimming drivers, which provide 10% continuous dimming are standard.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index (Ra) > 70.
• Cast aluminum housing with dark bronze, powder coat finish.
• Dimensions: Model 7L 14″(L) x 5″(W) x 9″(H) Wt. 8lbs., Model 10L 14″(L) x 5″(W) x 9″(H)
• Wt. 8lbs. and Model 15L 14″(L) x 5″(W) x 9″(H) Wt. 9lbs.
• Semi-Cutoff Wall Pack Lens: Glass.
• Three ½” NPT threaded openings.
• cULus listed for wet locations in ambient temperatures from – 20°C to 40°C (-4°F to 104°F).
• IP65 rated for ingress protection.
• DLC 5.1 premium approved.
• Complies with FCC Part 15, class A.
• Semi-Cutoff Wall Pack Surge immunity protection (4kV).
• 5-year warranty on all electronics and housing.

WPT-7L-LKFS, WPT-10L-LKFS, WPT-15L-LKFS Specification Sheet
