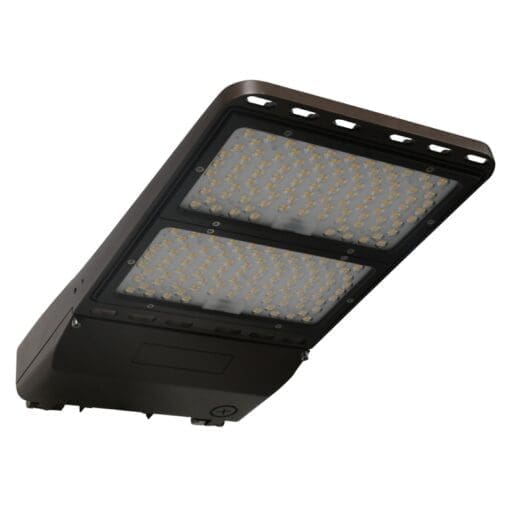

LED Area Light MPALPRO-40L-LKFS, Field Select Lumen & Kelvin Setting, 3K, 4K, 5K, Type 3/5 Light Distribution, DLC Premium

LED Area Lights MPALPRO-40L-LKFS, Ground and Elevated Flood Light Illumination

LED Area Lights MPALPRO-40L-LKFS. Versatile ground and elevated interior and exterior fixture. At installation Field Select lumen and Correlated Color Temperature (CCT). IES roadway photometric distributions include Types III & V. Area light fixtures are DLC 5.1 Premium approved. MPALPRO-40L-LKFS area lights provide exceptional LED longevity with a L70 rating of 162,000 hours. The aluminum housings are protected with a durable dark bronze powder coat finish and fitted with an IK08 rated impact resistant polycarbonate lens. Each fixture is cULus listed for wet locations and IP65 rated for ingress protection. Universal 120-277 AC voltage (50-60Hz) is standard as is 0-10vdc drivers providing 10% continuous dimming. Factory installed NEMA photocell receptacles are available. LED area lights are backed by Best Lighting Products 5-year warranty on all electronics and housing.

Area Light Features and Specifications:

Manufacturer: Best Lighting Products
Model Numbers: MPALPRO-40L-LKFS-T3 and MPALPRO-40L-LKFS-T5
DLC Premium approved
Correlated Color Temperatures (CCT): Field Selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Lumen Distribution Options: Type III and Type V
Lumen Output Range: T3 – 28,924 – 44,173, T5 29,447 – 44,079. Refer to specification sheet for lumen output for wattage and lumen distribution Types.
Input Power Options: Universal 120-277V (50/60Hz) or 277-480V (50/60Hz) AC voltage with 6-foot incoming power cords.
Watertight, compression-type electrical connectors
Housing Material: Die cast aluminum housing with dark bronze powder coat finish.
Lens: Heat-Resistant Polycarbonate IK 9 rated
Dimensions: 23.5” x 12″ x 4″
Unit Weight: 16.3 pounds
Dimmable: Yes
Installation Locations: Ground, Wall, and Pole
Warranty: 5 Years
Power Factor: >0.90
LED Light Output Efficacy (lumens/watt) range: 130 to 162. See specification sheet for additional details.
Color Rendering Index: >80
Operational Temperature Range: -40 to 50℃ (-40 to 122°F)
LED Lifespan @ 70% (L70): 162,000 hours
Total Harmonic Distortion (THD): <20%
Listings: cULsu listed for wet locations. IP65 ingress protection. Complies with FCC Part 15, Class A. Complies with EN61000-4-5, surge immunity protection (6kV). Rated for 3G vibration.
Optics support IES roadway Type III or V distribution.
NEMA Photocell Options: Blank or 3-pin NEMA. Photocell sold separately JL-205C23-IP65. Must be Factory Installed.
Optional Mounting brackets: Yoke, Trunnion, Arm, Adjustable Arm, and Slip-Fitter.
Optional lens protection includes full glare shield, half glare shield & wire guards.

MPALPRO-40L-LKFS Specification Sheet
