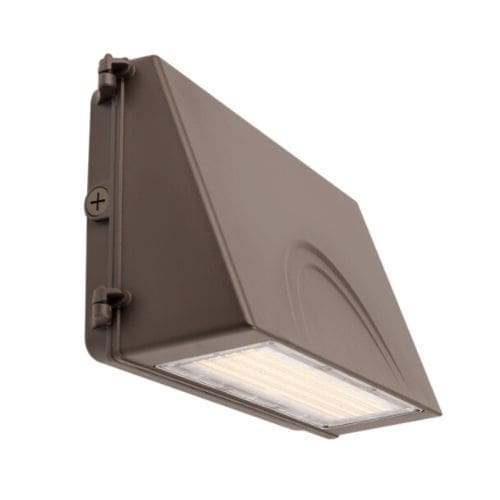

Full Cutoff Wall Pack WPFC-XL Lumen Kelvin Field Selectable Dimmable L70 136000hrs DLC Premium

Full Cutoff Wall Pack WPFC-XL-LKFS-P- Field Selectable Kelvin and Lumen Output

Full Cutoff Wall Pack delivers Field Selectable Kelvin (CCT) and Lumen output options. Exterior lighting versatility at its best. LED lighting fixture is typically installed on exterior walls, garages, and stairwells. Light output options range from 5,200 to 16,800 nominal lumens and 130 to 161 nominal lumens per watt (lm/W).

Dusk to dawn outdoor light fixture is DLC 5.1 Premium approved, L70 rated at 136,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. Aluminum housing is protected with a durable dark bronze powder coat finish and fitted with a seamless silicone gasket seal and impact resistant polycarbonate lens.

Wall pack design accommodates an optional button or pencil photocell sensor. Full cutoff lights selectable Correlated Color Temperatures (CCT) include 3000K (warm white), 4000K (neutral white) and 5000K (cool white). Adjustable lumen output levels are low, medium, and high.

Wall Pack Features, Warranties and Listings:

• Manufacturer: Best Lighting Products
• Full Cutoff Wall Pack Models: WPFC-8L-LKFS-P and WPFC-15L-LKFS-P
• Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.
• Long-life LEDs provide at least 70% of initial lumen output (L70) for > 136,000 hours of operation, and at least 90% of initial lumen output (L90) for > 41,000 hours of operation.
• LED chromaticity is based on < 5-step ANSI quadrangles.
• LED color maintenance < 0.003 chromaticity shift ((Δu’v’) over the initial 6,000 of operation.
• Provides a range of 5,200 to 16,800 nominal lumens and 130 to 161 nominal lumens per watt (lm/W).
• 10vdc dimming drivers are standard.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index (Ra) > 80.
• Cast aluminum housing with dark bronze, powder coat finish.

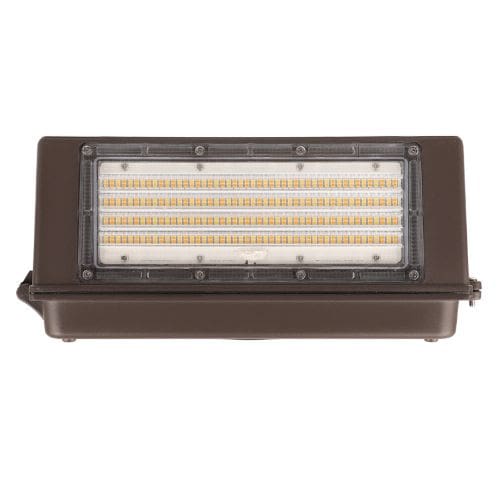

• Full Cutoff Wall Pack Lens: Polycarbonate
• Weight: 8L = 5 lbs / 15L = 5 lbs
• Three ½” NPT threaded openings.
• cULus listed for wet locations in ambient temperatures from -40°C to 45°C (-40°F to 113°F).
• IP65 rated for ingress protection.
• DLC premium approved.
• Complies with FCC Part 15, class B.
• Surge protection = 4kV.
• 5-year warranty on all electronics and housing.

WPFC-8L-LKFS-P and WPFC-15L-LKFS-P Specification Sheet
