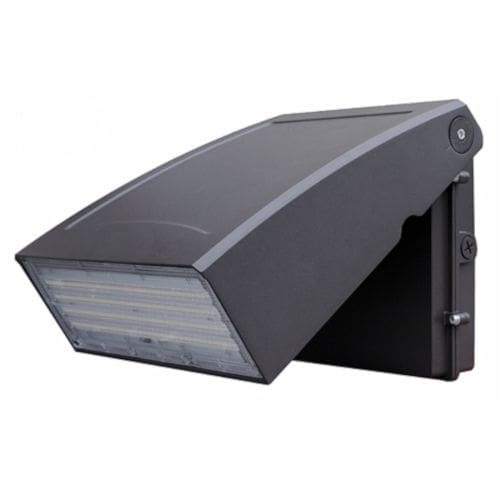

Adjustable Wall Pack WPA-LKFS, 90° Transit, Lumen & Kelvin Field Select, Dimmable, L70 146,000hrs, DLC Premium

Adjustable Wall Pack WPA-LKFS – 90° Vertical Orientation Delivers Maximum Illumination Flexibility

Adjustable Wall Pack WPA-LKFS Light Series. Flexible vertical orientation maximizes light projection operation. Wall Pack capabilities include Field Selectable Kelvin (CCT) and Lumen output options. At installation choose 3000k (warm white), 4000k (neutral white), or 5000k (cool white) color temperature and lumen output level at low, medium, or high. Light levels range from 3,000 to 10,700 nominal lumens and 133 to 154 nominal lumens per watt (lm/W). Dusk to dawn outdoor light fixture is DLC 5.1 Premium approved, L70 rated at 146,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. Aluminum housing is protected with a durable dark bronze powder coat finish and fitted with a seamless silicone gasket seal and impact resistant polycarbonate lens. Wall pack includes 0-10vdc dimming drivers and operates on Universal 120-277 AC voltage (50-60Hz).

WPA-LKFS Features and Listings:

Manufacturer: Best Lighting Products
Models: WPA-5L-LKFS or WPA-10L-LKFS
Correlated Color Temperature (CCT): 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
Adjustable Wall Pack fixture transit range is up to 90°.
Long-life LEDs provide at least 70% of initial lumen output (L70) for > 146,000 hours of operation, and at least 90% of initial lumen output (L90) for > 44f,000 hours of operation. L70 & L90 hours are IES TM-21-11 calculated hours.
LED chromaticity based on < 5-step ANSI quadrangles.
LED color maintenance < 0.003 chromaticity shift ((Δu’v’) over the initial 6,000 of operation.
Provides a range of 3,0000 to 10,700 nominal lumens and 132 to 154 nominal lumens per watt (lm/W).
0-10vdc dimming drivers, which provide 10% continuous dimming are standard.
Universal 120-277 AC voltage (50-60Hz) is standard
Adjustable Wall Pack Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index (Ra) > 80.
Cast aluminum housing with dark bronze, powder coat finish.
Dimensions: Model 5L 6.5″(L)x4″(W)x8″(H) Wt. 3lbs., Model 10L 8.5″(L)x5″(W)x11″(H) Wt. 5lbs.
Lens: Polycarbonate.
Three ½” NPT threaded openings.
Easy installation in new construction or retrofit applications.
cULus listed for wet locations in ambient temperatures from 40°C to 50°C (-40°F to 122°F).
Adjustable Wall Pack is IP65 rated for ingress protection.
DLC Premium 5.1 approved.
Complies with FCC Part 15, class B (7L, 8L, & 11L).
Surge immunity protection (4kV).
5-year warranty on all electronics and housing.

WPA-5L-LKFS and WPA-10L-LKFS Specification Sheet
