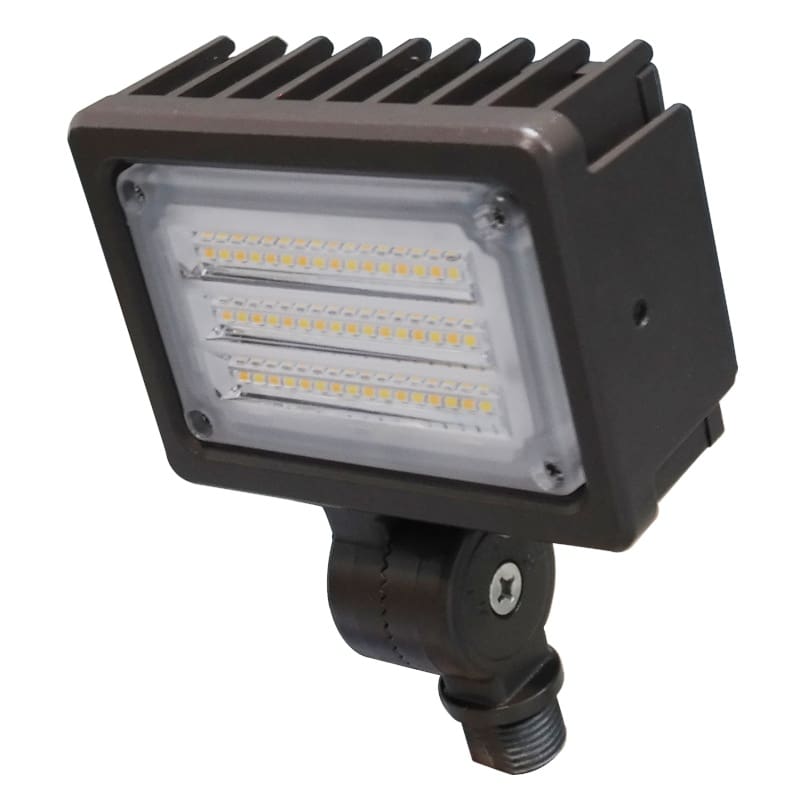

LED Area Light MPAL-LKS Three Models, Field Select CCT, IES Type V or Floodlight. IP65, DLC Premium

LED Area Light MPAL-LKS – Showcase Landscape and Building Architectural Details

LED Area Light MPAL-LKS. Field Select at installation Kelvin (CCT). Choose 3500k (warm/neutral white), 4000k (neutral white), or 5000k (cool white). Standard optic provides an IES Roadway Type V distribution or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.

Three nominal lumen models are available. Lumen output range for Model MPAL-2L is 2,002 to 2,179. For Model MPAL-4L the range is 4,436 to 4,696 and for Model MPAL 7L the range is 6,601 to 7,170.

Area Lighting MPAL-KFS models are DLC Premium listed, L70 rated at 149,000 hours, cULus listed for wet locations, and IP65 ingress protection rated. The die cast aluminum housing is protected with a durable dark bronze powder coat finish. Each model is equipped with a seamless silicone gasket seal and a IK 10 rated impact resistant polycarbonate lens. A wireway enclosure is also included.

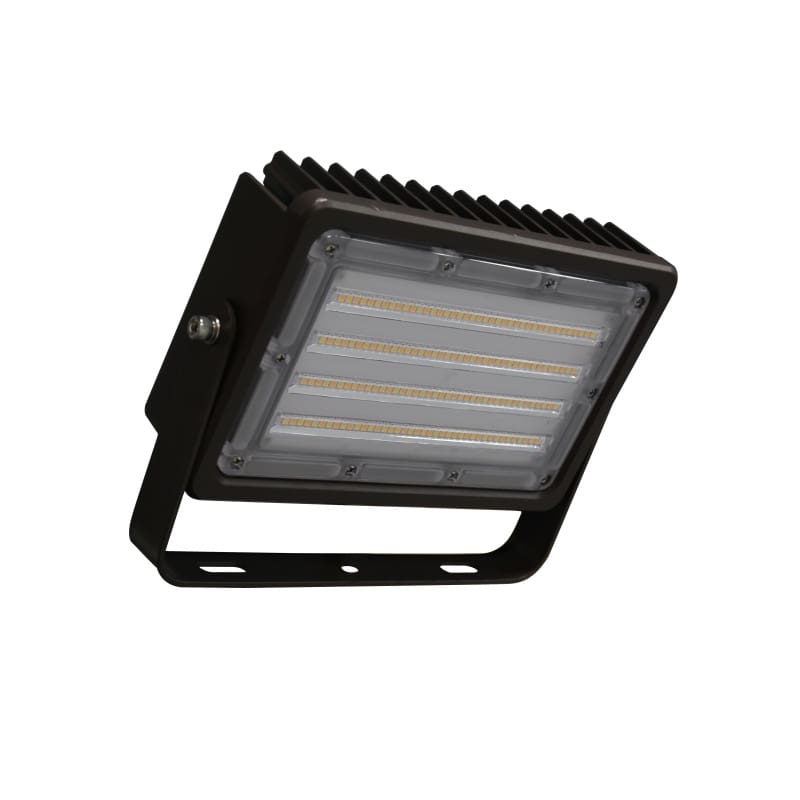

Area light includes 0-10vdc dimming drivers. Universal 120-277 AC voltage (50-60Hz) is standard. Aluminum knuckle mount for junction box installation is included. Optional Yoke mount for flat surface attachment and Line voltage ground stake is each sold separately. Best Lighting Products includes a Five-year warranty on all electronics and housing.

LED Area Light MPAL-LKS Specification Sheet

Need Quantity or a Variety of Products? Contact EcoCentricNow to Receive a Quotation
